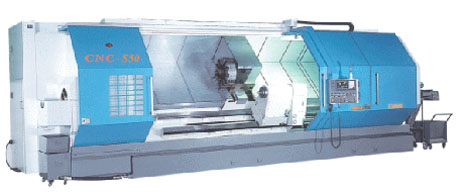

Center height |
637 mm |
Swing over bed |
1275 mm |
Swing over Carriage |
970 mm |
Distance between centers |
2000~6000mm |
Width |
1475mm |
Spindle speed |
1-500 rpm |
Spindle nose |
A2-15; Option: A2-20, A2-28 |
Spindle motor |
30/35 HP (22/26/ kW) Options: 40/50 HP (30/37 kW), 50/60 HP (37/45 kW) 80/100 HP (60/75 kW) 137 HP (100 kW) |
Spindle bore |
230mm Options: 318m, 360mm, 410mm, 535mm |
Number of tool stations |
12 |
Tool shank cross section |
40 mm |
Tool shank diameter |
60 mm |
X axis travel (box way) |
662 mm |
Z-axis travel (box way) |
same as distance between centers |
Cutting feedrate |
0.001-500 mm/rev |
Ballscrew diameter (X-axis) |
50mm x P10 |
Ballscrew Diameter (X-Axis) |
63mm X P10 (over 5m use linear motor) |
TAILSTOCK |
|
Quill diameter |
23 5mm |
Quill travel |
250 mm |
Quill taper |
MT #6 |
Turret |
--- |
Servo VDI50, 12-station |
C- axe (option) |
|
Motor |
--- |
7.5/11 kW |
Speed |
--- |
5,000 rpm |
Spindle resolution |
--- |
0.001° |
AC Servo |
12 HP (9 kW) |
Hydraulic pump motor |
5 HP (3.75 kW) |
Coolant pump motor |
1.5 HP (1.1 kW) |
W x H |
3470 x 3400 mm |
L (2000mm) |
8100mm |
Weight |
32000kg |
