Heavy duty CNC lathe with large machining capacity

swing over bed 780-5000 mm, distance between centers 30 meters

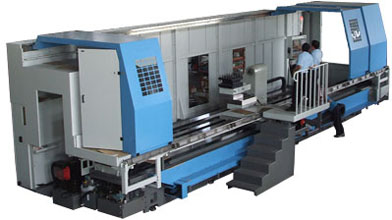

This category of extra heavy CNC lathes come from a workshop TOP TURN, the world's leading manufacturer of lathes of similar size . This series begins with three model lines are extremely rigid CNC lathes with inclined bed ( S36 , 40 and 50) with swing diameter over bed to 1275 mm . To follow this model series models XCF offered boring diameter to 535 mm, swing by 1400. Series of extra heavy lathe model range close to fulfilling expectations to a tee on the "extra heavy duty lathes . Imagine that you are necessary before the S60 -160 or HD series with orbital averages 1600-5000 mm above the bed and the machining length of 30 meters.

Lathes are designed based on years of experience with manufacturing lathes with rotating large diameter and length of the workpiece . They offer really great working performance with high torque during machining pieces of impeller diameter to 5000 mm. Solid cast iron bed, ensures high machine rigidity so under intense roughing operations can be done with great precision work . The entire machine structure is plotted down to the smallest detail , so that the machine operator was the most effective .

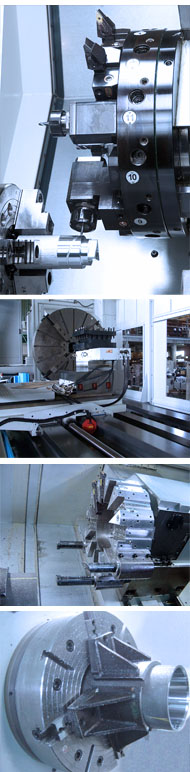

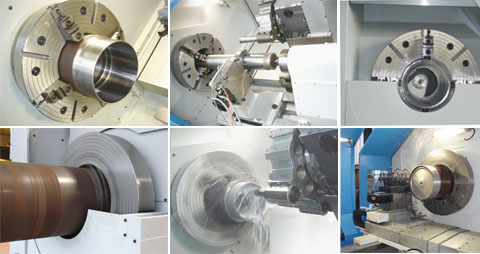

They are suitable for serial processing of long and massive piece of heavy industry .It is designed for roughing and finishing large shaft and flange parts , the thread cutting , drilling, turning, cones and various shaped surfaces of revolution. Addition of C and Y axes can also multiply the effectiveness of working machines

Choose Model	Swing over bed	Swing over slide	Max. workpiece lenght
S 36	780 mm	550 mm	700-1700 mm
S 40	1010 mm	680 mm	2000-6000 mm
S 50	1275 mm	970 mm	2000-6000 mm
XCF 46	1120 mm	750 mm	1000-10000 mm
XCF 56	1400 mm	1000 mm	1000-10000 mm
S60-160	1600-4080 mm	1245-3200 mm	2000-16000 mm
HD 300-500	3000-5000 mm	2500-3425 mm	4-30 meters
